Scaling up crystallization conditions from nano-drops to micro-drops

Scaling up


If you set up your initial screens with 100 nl (protein) + 100 nl (reservoir solution) drops, it's quite likely that you will have to scale up to larger drops in order to get crystals that are large enough to collect data from.

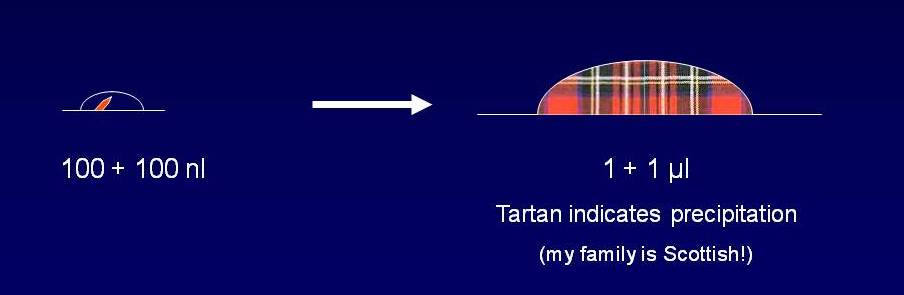

If you take the same solutions and simply increase the volume to say 1 + 1 ul, you will often get precipitation instead of crystallization.  This is a counterintuitive result because people correctly believe that the smaller drops will dry out more quickly, and they therefore assume that they will see more precipitation in the smaller drops.

However, the situation becomes clear when you realize that there are two important differences between large and small drops:

1. The surface area to volume ratio is greater for the smaller drops (to put it another way, more of the small drop is close to the surface).

2.  The smaller drops equilibrate with the reservoir more quickly.

Point (1) means that more protein is lost on surfaces of smaller drops.  In fact, for a typical protein, using 0.1 + 0.1 drops, roughly half of the protein is denatured and either sticks to the plastic surface of the plate or to the air-drop interface, forming a skin.  You therefore need to decrease the amount of protein when you scale up.  This can be done either by diluting the protein by a factor of around two, or by halving the volume of protein added to the drop, e.g. using 0.75 (protein) + 1.5 (reservoir solution).

An alternative approach is to screen with 0.2 + 0.1 drops in the first place.  According to Heather Ringrose (Pfizer, UK), you find conditions that are different to those with the normal 0.1 + 0.1 dops,  but these new conditions will scale up to 1 + 1.



Scaling up



Many people use 0.3 + 0.3 for their initial screens which is a compromise between several factors:  the need to save protein, the ease of scaling up, and the likelihood of obtaining diffraction-quality crystals right out of the initial screen.  It should not be necessary to increase the drop volume beyond this for initial screening.

Incidentally, if you're trying to grow really large crystals (for example for neutron diffraction) it often helps to increase the volume of drops to 5 + 5 or above, especially in a microbatch-under-oil setup.  This implies that crystals often stop growing because they've run out of protein.

Another tip is to increase the salt concentration in the scaled-up drop.  If you have e.g. 200 mM salt in the nano-drops, try increasing it to around 300.  Similarly, if the main precipitant is 1 M salt solution, try 1.5 M.  This observation comes from both practical experience and data mining.  It's not clear what the mechanism is, but it may be related to the slower equilibration rate for large drops.

Patrick Shaw Stewart, March 2012.
