Lipidic Cubic Phase crystallization with the Oryx by Douglas Instruments

Lipidic Cubic Phase crystallization (LCP) is now available to order as an option or upgrade for Oryx4 or Oryx8.


With Oryx LCP you can:

• dispense volumes from 10 nL up to 1000 nL or more

• dispense LCP screening experiments to sandwich plates as well as vapour diffusion, microbatch, and 24 well hanging drop

• dispense a 96 well sandwich screen in under 25 minutes, and a 96 well vapour diffusion screen in under 15 minutes


Any phase change caused by evaporation from the LCP is prevented by covering the LCP volume with reagent immediately after it is dispensed.

During an experiment, the evaporation shield creates a humid / vapour saturated environment. This prevents evaporation from the reagent drop covering the LCP.

Software will soon be available for designing and dispensing LCP optimization experiments using our XStep software *. This can be used to create LCP optimization experiments with up to 7 ingredients such as pH gradients and multivariate designs. LCP dispensing is also available for additive screening, additive optimization experiments and simple 2-d grid optimizations.

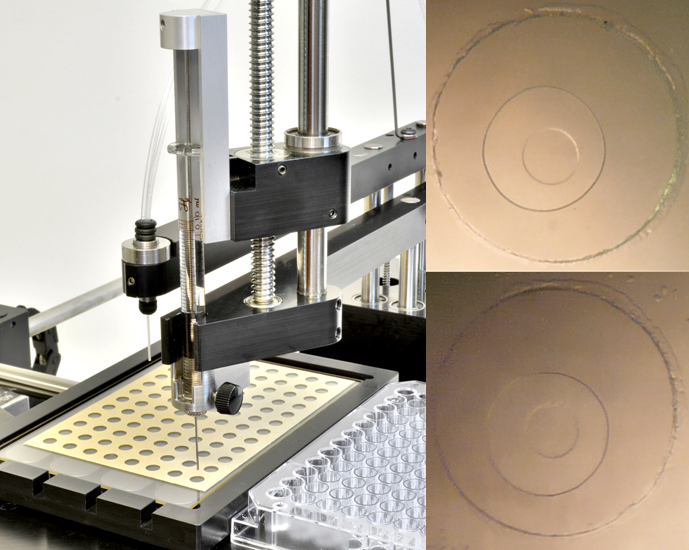

LCP screening experiment drops in image above, top and bottom right. 100 nL LCP + 1000 nL screen dispensed to Marienfeld LCP sandwich plate.

* LCP optimization experiments can be designed and dispensed with Oryx8
