Automatic Protein Crystallization Robots |
|
Oryx8
|
Sitting drop crystallization (100 + 100nl to 2+2µl), "MMS"
Microseed Screening, 2D
optimization, additive experiments, microbatch-under- oil and multi-variate
optimization
Feature comparison for Oryx robots |
|
|

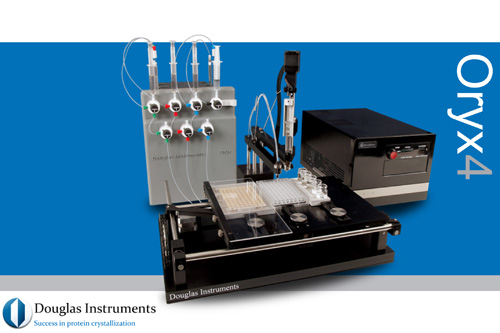

Oryx4
|
Sitting drop crystallization (100 + 100nl to 2+2µl), "MMS"
Microseed Screening, 2D
optimization, additive experiments and microbatch-under- oil.
Feature comparison for Oryx robots |
|
|

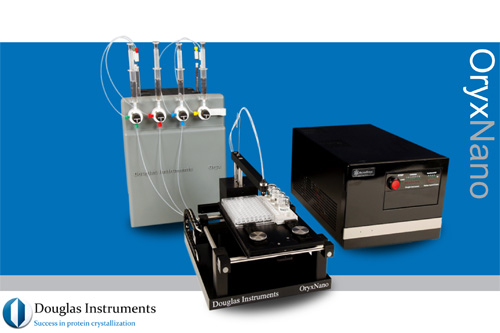

OryxNano
|
Sitting drop crystallization (100 + 100nl to 2+2µl), "MMS"
Microseed Screening and
2D optimization.
Feature comparison for Oryx robots |
|
Regular discounts are offered for Oryx
in North America, Europe, Australia and New Zealand: 5% for government institutes and 10% for universities. These discounts
will be reduced if it is necessary to prepare a tender.
In China (and other countries outside North America, Europe, Australia
and New Zealand) Douglas Instruments does not sell directly, and prices
may vary. Extra charges for installation and support may apply in
these countries.
US dollar prices apply to systems shipped to the USA only. |
|
Vapor Batch Plates
Crystal Clear Strips
Microtips
Liquid Handling Spares
|
|
Product
|
|
Product
Code |
|
SWISSCI 'MRC'
2-Well Crystallization Plates
The popular SBS format plate now available from
Douglas Instruments.
Wide partition walls for good sealing
Microscopic identifiers within wells
|
 |
|
Available in Polystyrene [-TPS] and
UV Transmissible Polymer [-TUVP]
|
|
Box of 10 plates
- Polystyrene
- UV Transmissible
Case of 100 contains 10 bags of
10 plates
- Polystyrene
- UV Transmissible
|
Box of 10 :
Box of 10 :
Case of 100 :
Case of 100 :
|
SW2T - PS/1-10
SW2T - UVP/1-10
SW2T - PS/1-100
SW2T - UVP/1-100
|
|
SWISSCI
3-Well Crystallization Plates
The new 3 Well SBS format plate now available from
Douglas Instruments.
Wide partition walls for good sealing
Microscopic identifiers within wells
|
 |
|
Available in Polystyrene [-TPS] and
UV Transmissible Polymer [-TUVP]
|
|
Box of 10 plates
- Polystyrene
- UV Transmissible
Case of 100 contains 10 bags of
10 plates
- Polystyrene
- UV Transmissible
|
Box of 10 :
Box of 10 :
Case of 100 :
Case of 100 :
|
SW3T - PS/1-10
SW3T - UVP/1-10
SW3T - PS/1-10
SW3T - UVP/1-100
|
Crystal Clear Strips
|
|
CrystalClear 'Duo' strips with two depressions
SBS spacing in both directions,
suitable for use with all dispensing robots and in all observation
systems.
|
Customers
in the USA can also obtain strips from
Hampton
Research
|
|
Miniature wells for Vapor Diffusion
with two depressions on the shelf for samples. Strips are sealed with
tape.
Box of 10 contains 10 frames with 12
strips each
Case of 100 contains 10 of above
Download
the definition drawing for
CrystalClear Duo
|
Box of 10 :
Case of 100 :
Contact us for bulk discount rates
|
CCLEAR-DUO/1-10
CCLEAR-DUO/1-100
|
|
CrystalClear 'D'
strips with depressions
SBS spacing in long direction only,
suitable for use with Oryx and other single head or variable spacing
robots and in all observation systems.
Download a specification
drawing of CC_D
here
|
Customers
in the USA can also obtain strips from
Hampton
Research
|
|
Miniature
wells for Vapor Diffusion with depressions on the shelf for samples.
Strips are sealed with tape.
Box of 10 contains 10 frames with 12
strips each
Case of 100 contains 10 of above
|
Box of 10 :
Case of 100 :
Contact us for bulk discount rates
|
CCLEAR-D/1-10
CCLEAR-D/1-100
|
|
CrystalClear 'P'
strips with platforms
SBS spacing in long direction only,
suitable for use with Oryx and other single head or variable spacing
robots and in all observation systems.
Download a specification
drawing of CC_P
here |
Customers
in the USA can also obtain strips from
Hampton
Research
|
|
Miniature
wells for Vapor Diffusion with platforms on the shelf for samples. Strips
are sealed with tape.
Box of 10 contains 10 frames with 12
strips each
Case of 100 contains 10 of above
|
Box of 10 :
Case of 100 :
Contact us for bulk discount rates
|
CCLEAR-P/1-10
CCLEAR-P/1-100
|
|
XtalQuest 48-2 Well Crystallization Plates
Suitable for manual or automatic work48 reservoirs, each with 2 drop positions
standard 9mm pitch (drop - reservoir - drop in long direction)
|
 |
|
Box of 10 plates with lids
|
Box of 10 :
|
XTALQUEST 48-2
|
Vapor Batch Plates |
96 Well plate
for microbatch or vapor diffusion experiments. Reservoirs around the edge
can be filled with a reservoir solution for vapor diffusion. They also
96 Well plate for microbatch or vapor diffusion experiments. Reservoirs around the edge
can be filled with a reservoir solution for vapor diffusion. They also
avoid oil spills in microbatch experiments. Wells are individually
labeled.
Sold
in boxes of 10 or 80 plates in two versions:
Hydrophobic
- reduces nucleation and crystals sticking.
Hydrophilic
(plasma treated) – recommended for small volume screening experiments.
Douglas Instruments is running
a competition
for the best use of the Douglas Vapor Batch Plate. |
|
|
Hydrophobic
Box of 10:
Box of 80:
Hydrophilic
Box of 10:
Box of 80:
Contact us for bulk discount rates |
VBATCH 1/1 PHO-10
VBATCH
1/1 PHO-80
VBATCH
2/1 PHI-10
VBATCH
2/1 PHI-80
|
|

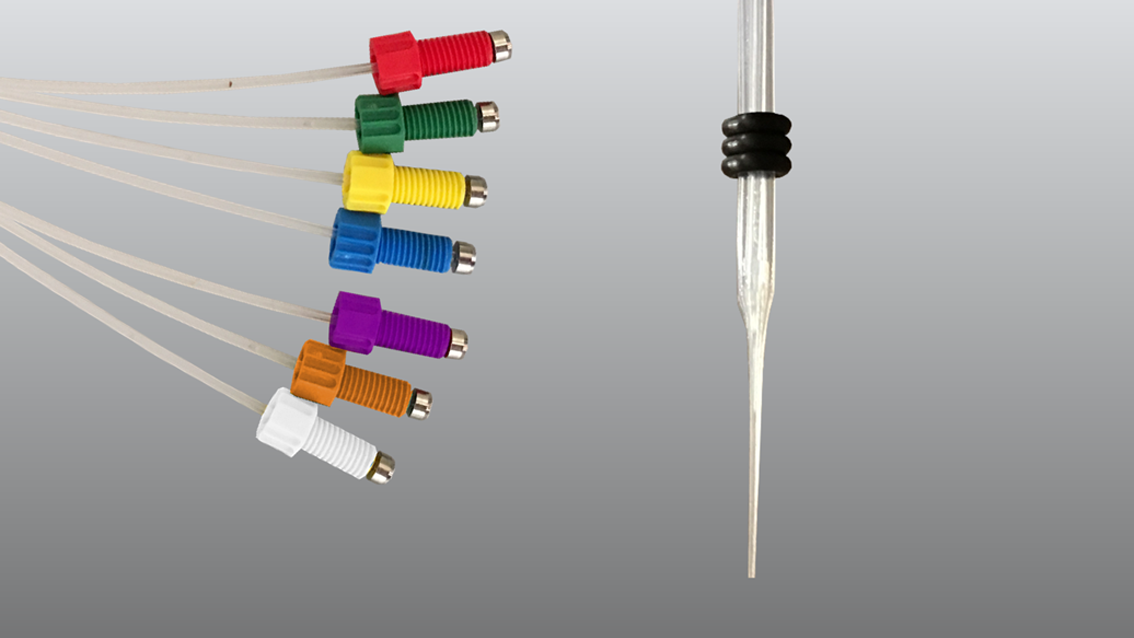

Microtips
-
for
dispensing optimization experiments |
|
7-bore (Oryx8 only)
5-bore (Oryx6 and Oryx8)
|
Each Tip :
Each Tip :
|
MTIP7
MTIP5-L/1
|
|
Microtips -
for
dispensing screening experiments
|
|
4-bore (Oryx6 and Oryx8)
3-bore Fine
2-bore Fine (recommended for drops < 1
µl)
2-bore Medium
2-bore Large
|
Each Tip :
Each Tip :
Each Tip :
Each Tip :
Each Tip :
|
MTIP4
MTIP3
MTIP2-L/3
MTIP2-L/1
MTIP2-L/2
|
|
|
|
Including
4 Hamilton Syringes, 4 short needles, 4 3-way valves, 4 female Luer
fittings, 4 ground glass syringes, 10 ferrules, 10 end-fittings.
|
|
IMP-LHS-1/1
|
